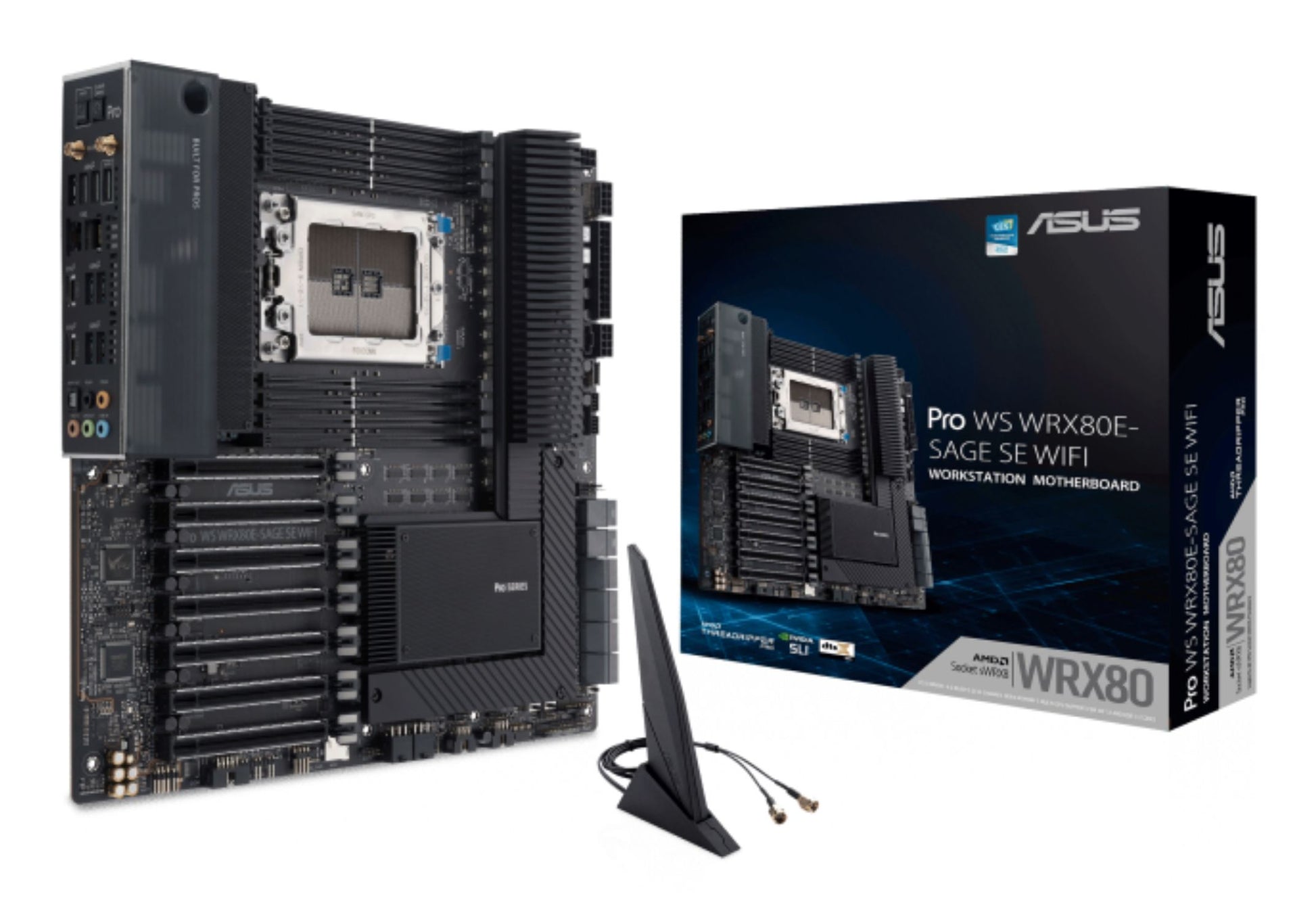

ASUS WRX80E-SAGE SE WIFI AMD WRX80 Socket SP3 ATX extended

ASUS WRX80E-SAGE SE WIFI. Processor manufacturer: AMD, Processor socket: Socket SP3, Compatible processors: AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 2.05 TB, Memory slots type: DIMM. Supported storage interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology: 2-Way SLI, 3-Way SLI, 4-Way SLI. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X550-T2, Standard Wi-Fi: Wi-Fi 6 (802.11ax)

Processor manufacturer

AMD

Processor socket

Socket SP3

Compatible Processors

AMD Ryzen Threadripper PRO 3000 WX-Series

Maximum number of SMP processors

1

Number of processor cores supported

64

Number of processor cores

64

Supported memory types

DDR4-SDRAM

Number of memory slots

8

Maximum RAM supported

2.05 TB

memory slot type

DIMM

Memory channels

Octa-channel

ECC compatibility

ECC & Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200 MHz

Supported storage drive interfaces

SATA III

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

2-Way SLI, 3-Way SLI, 4-Way SLI

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

8

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

6

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

TPM connector

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

9

Ethernet LAN ports (RJ-45)

0

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

0

Quantity of DVI-D ports

0

PS/2 Ports Quantity

0

Headphone outputs

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

10 Gigabit Ethernet

LAN Controller

Intel X550-T2

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Component for

PC

Motherboard Form Factor

Extended ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD WRX80

Cooling type

Passive

Supported Windows operating system

Windows 10 x64

Compatible operating system

Windows 10

PCI Express x8 slot (Gen 2.x)

0

PCI Express x8 slot (Gen 3.x)

0

PCI Express x16 slots

7

PCI Express x16 slot (Gen 2.x)

0

PCI Express x16 slot (Gen 3.x)

0

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Trusted Platform Module (TPM)

Yes

Harmonized System Code (HS)

84733020

Length

309.8 mm

Depth

330 mm

Height

108 mm

Cables included

SATA, VGA

Drivers included

Yes

Weight

572 g

Number of processors supported

1
