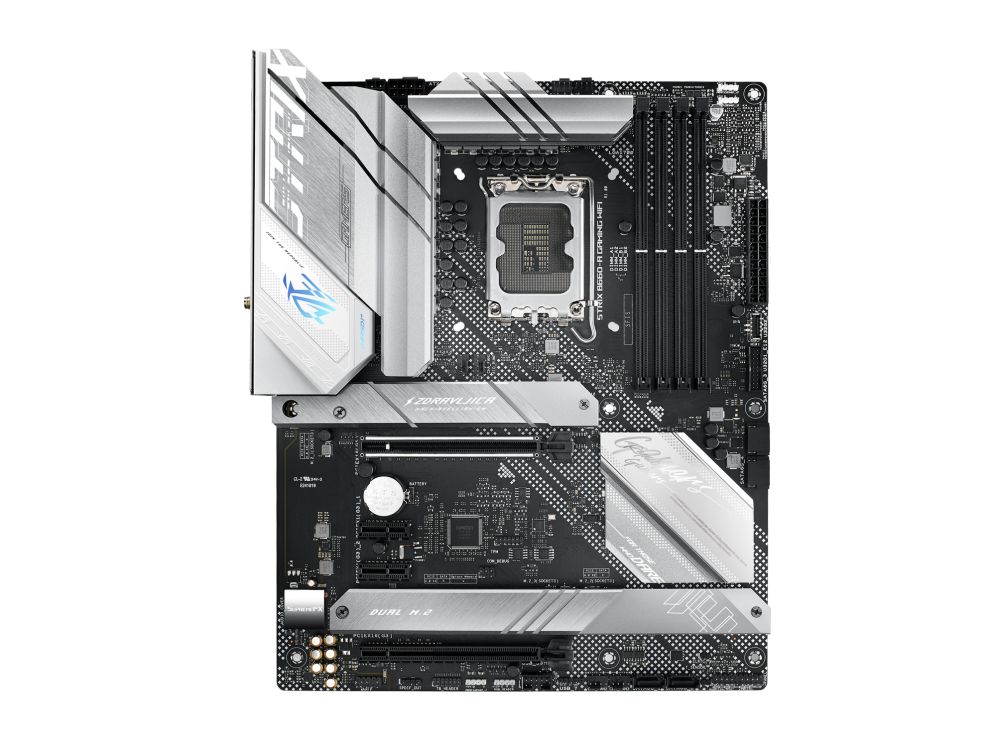

ASUS ROG STRIX B660-A GAMING WIFI Intel B660 LGA 1700 ATX

ASUS ROG STRIX B660-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors

1

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5200,5400,5600,5800,6000 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 5, 10

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

S/PDIF output connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

TPM connector

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Wake-on-LAN ready

Yes

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.2

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B660

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Supported Windows operating system

Windows 10 x64, Windows 11 x64

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slots

2

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

192 Mbit

Harmonized System Code (HS)

84733020

Length

305 mm

Depth

244 mm

Height

73 mm

Cables included

SATA

Weight

1.42 kg
