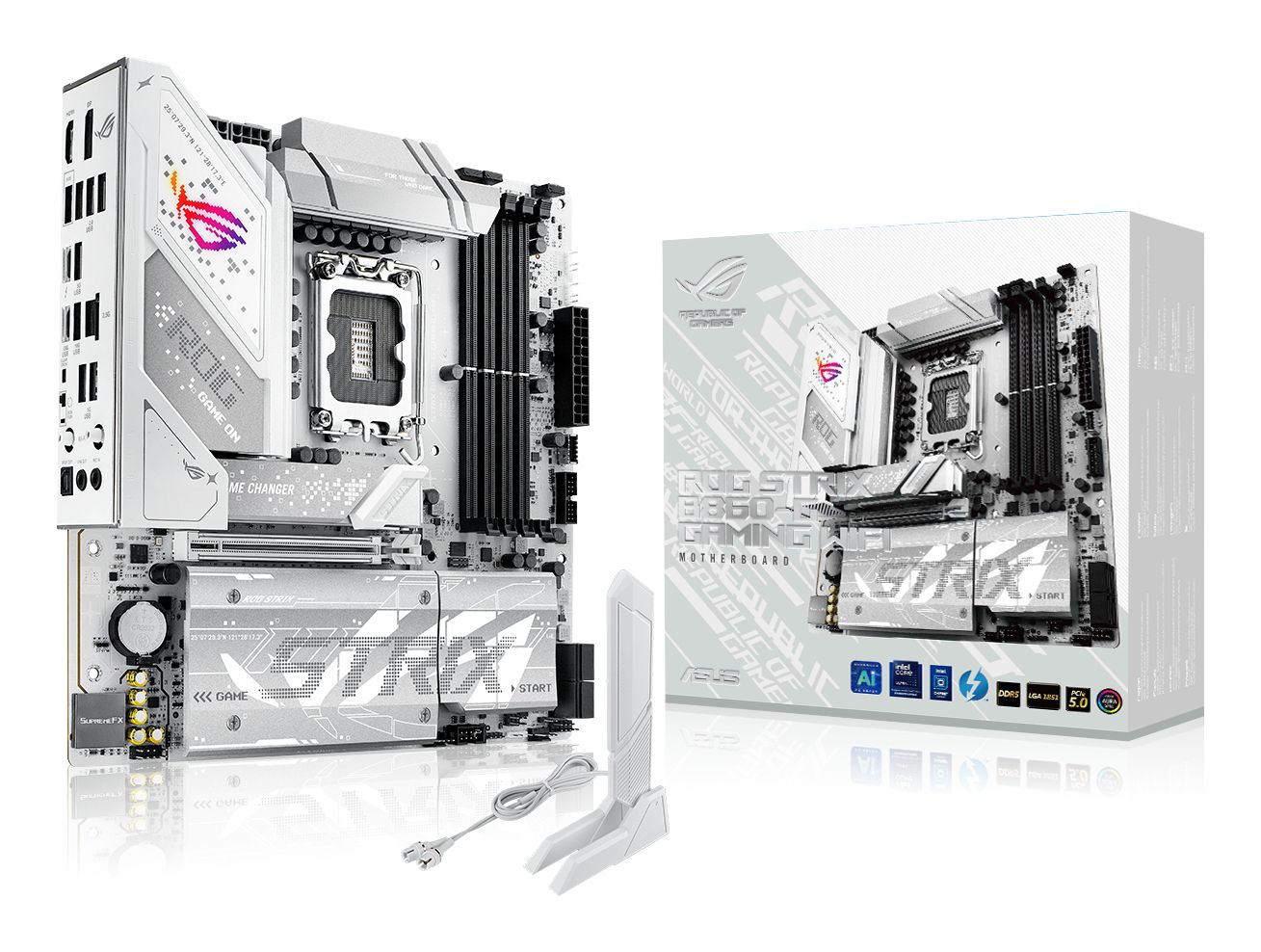

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS ROG STRIX B860-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum supported RAM: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Standard Wi-Fi standard: Wi-Fi 7 (802.11b/g/n). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible Processors

Intel Core Ultra (Series 2)

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Maximum RAM supported

256 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory clock speed (max)

9066 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

8

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of CPU fan connectors

1

Number of chassis fan connectors

2

EPS Power Connector (8-Pin)

Yes

Connector with 12V power

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

DisplayPort Quantity

1

Microphone input jack

Yes

S/PDIF output port

Yes

Thunderbolt Ports Quantity

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Audio system

7.1 channels

Audio chip

Realtek ALC1220P

Product color

White

Supported Windows operating system

Windows 11

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

4

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

285 mm

Packaging depth

274 mm

Packaging height

72.5 mm

Packaging weight

2.12 kg

Length

244 mm

Depth

244 mm

Height

50 mm

Weight

1.23 kg
