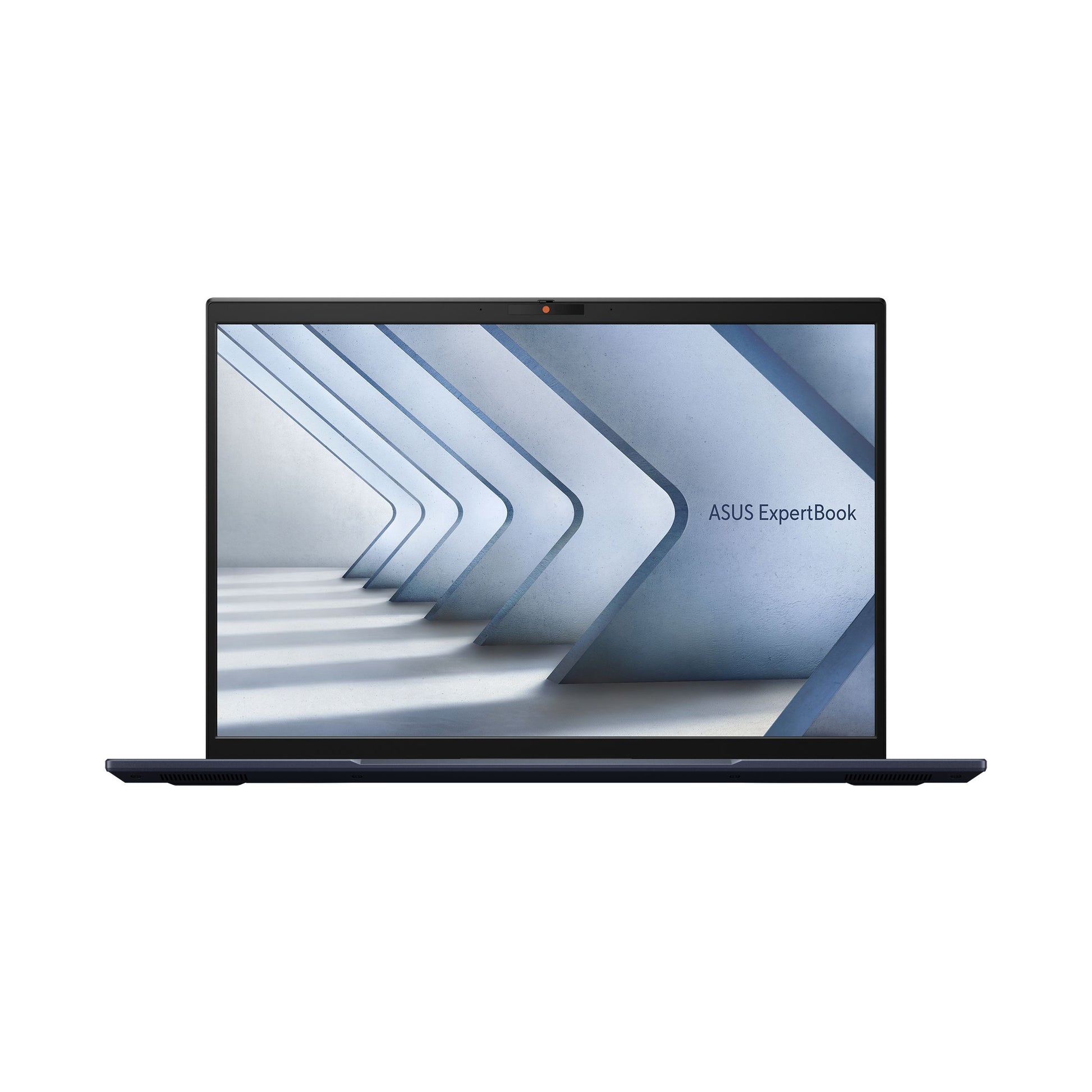

ASUS ExpertBook B5 B5604CMA-Q90427X Intel Core Ultra 7 155H Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 1 TB SSD

ASUS ExpertBook B5 B5604CMA-Q90427X. Product type: Notebook, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Diagonal display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Installed memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics adapter model: Intel Arc Graphics. Operating system installed: Windows 11 Pro. Product colour: Black

Product type

Laptop

Product color

Black

Form factor

Clamshell

Color name

Star Black

Body material

Aluminum

Market positioning

Work

Year of introduction

2024

Screen diagonal size

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touch screen

No

HD typology

WUXGA

LED backlight

Yes

Native aspect ratio

4.10pm

Anti-glare screen

Yes

Screen brightness

300 cd/m²

RGB color space

NTSC

Color range

45%

Maximum refresh time

60 Hz

Processor family

Intel Core Ultra 7

Processor manufacturer

Intel

Processor model

155H

Processor generation

Intel Core Ultra (1 Series)

Number of processor cores

16

Number of processor threads

22

Maximum turbo processor frequency

4.8 GHz

Performance Core

6

Efficient cores

8

Low energy efficiency core

2

Processor Turbo Frequency Maximum Performance-core

4.8 GHz

Efficient-core Processor Maximum Turbo Frequency

3.8 GHz

Maximum turbo frequency of the low power core

2.5 GHz

Performance Core Base Frequency

1.4 GHz

Efficient core base frequency

0.9 GHz

Low power efficiency core base frequency

700 MHz

Processor cache

24 MB

Processor cache type

Smart cache

Base processor power

28 W

Maximum turbo power

115 W

Neural Processing Unit (NPU)

Intel AI Boost

NPU Maximum Frequency

1.4 GHz

Sparsity support

Yes

Windows Studio Effects Support

Yes

AI software frameworks supported by the NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Installed RAM

16 GB

Maximum RAM supported

64 GB

RAM Type

DDR5 SDRAM

Memory form factor

SO-DIMM

Memory slot

2x SO-DIMM

Total storage capacity

1 TB

Memory support

SSD

Optical drive type

No

Total SSD capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

Solid State Drive (SSD) Interface

PCI Express 4.0

NVMe

Yes

SSD size

M.2

Integrated graphics card

Yes

Separate graphics card adapter

No

Dedicated graphics card

Not available

Integrated graphics card model

Intel Arc Graphics

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel Arc Graphics

Audio system

Dolby Atmos

Built-in microphone

Yes

Front camera

Yes

Front camera HD type

Full HD

Mobile network connection

No

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

Ethernet LAN connection

Yes

Ethernet LAN Transfer Speed

10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of HDMI ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

Ethernet LAN ports (RJ-45)

1

HDMI version

2.1

Number of Thunderbolt 4 ports

2

Intel® Thunderbolt 4

Yes

Microphone/headphone combo jack

Yes

USB Type-C DisplayPort Alternate Mode

Yes

Numeric keypad

Yes

Pointing device

Touchpad

Operating system included

Windows 11 Pro

Operating system architecture

64-bit

Battery technology

Lithium Ions

Number of battery cells

3

USB Type-C charging port

Yes

AC Power Dissipation Adapter

65 W

AC frequency adapter

50 - 60 Hz

AC input voltage adapter

100 - 240 V

AC output power adapter

3.25 A

AC output voltage adapter

20 V

USB power supply

Yes

Cable lock

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection

BIOS, HDD, User

Certificates of conformity

REACH

Sustainability certificates

ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Recycled

Length

358 mm

Depth

254.3 mm

Height (front)

1.89 cm

Height (rear)

2.29 cm

AC/DC adapter

Yes

Sustainability Compliance

Yes
