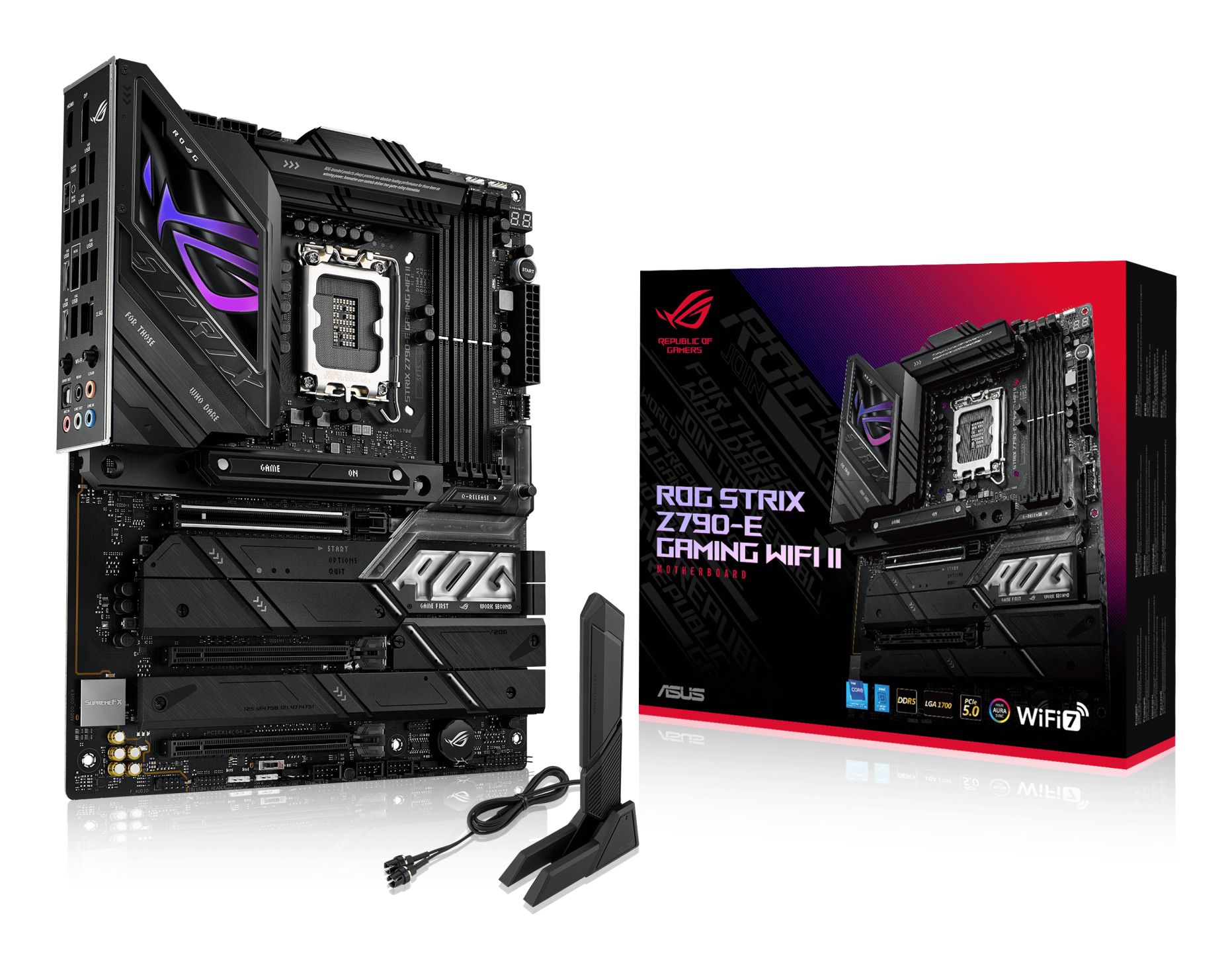

ASUS ROG STRIX Z790-E GAMING WIFI II Intel Z790 LGA 1700 ATX

ASUS ROG STRIX Z790-E GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi standard: Wi-Fi 7 (802.11b/g/n), Wi-Fi standard: Wi-Fi 7 (802.11b/g/n). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz

Supported memory clock speed (max)

8000 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

9

RAID support

Yes

RAID Levels

0, 1, 5, 10

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

USB 3.2 Gen 2x2 connectors

1

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

5

EPS Power Connector (8-Pin)

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

10

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

DisplayPort Quantity

1

Line input

Yes

Microphone input jack

Yes

S/PDIF output port

Yes

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Wi-Fi Standard

Wi-Fi 7 (802.11b and b)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Supported Windows operating system

Windows 10 x64, Windows 11

PCI Express x16 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

5

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Length

305 mm

Depth

244 mm
