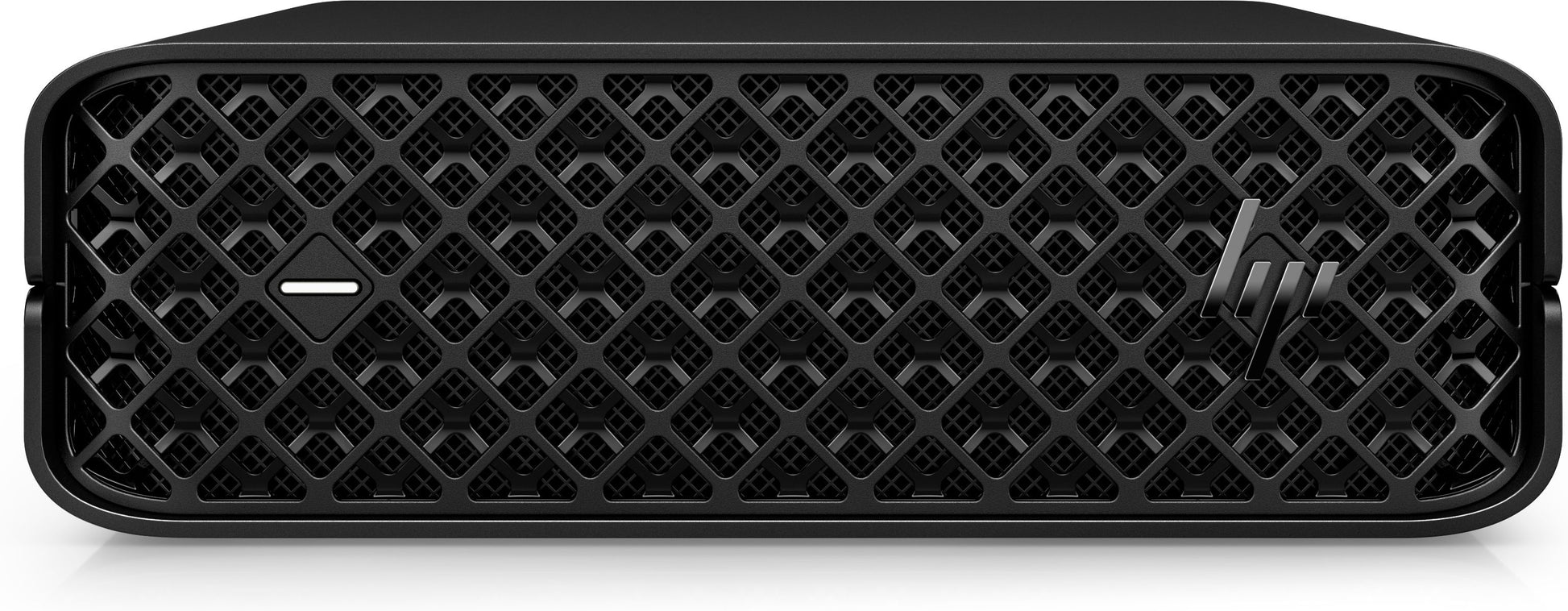

HP Z2 Mini G9 Intel® Core™ i7 i7-13700 32GB DDR5-SDRAM 1TB SSD NVIDIA Quadro T1000 Windows 11 Pro Mini PC Workstation

All the power you need for the most demanding workflows, in a truly minimal footprint.
Manage workflows previously unthinkable for such a small PC. The HP Z2 Mini can easily be installed on your desk or behind your monitor to handle 3D projects with minimal space. And with HP Wolf Security Suite, you'll always be protected: from the BIOS to the browser, and at every level of the operating system.

HP Z2 Mini G9. Processor family: Intel® Core™ i7, Processor model: i7-13700. Installed RAM: 32 GB, RAM type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. Integrated graphics adapter model: Intel UHD Graphics 770, Discrete graphics adapter: NVIDIA Quadro T1000. Operating system installed: Windows 11 Pro. Power supply: 280 W. Chassis type: Mini PC. Product type: Workstation. Weight: 2.4 kg. Product colour: Black

Processor family

Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-13700

Processor generation

13th Generation Intel® Core™ i7

Number of processor cores

16

Number of processor threads

24

Maximum turbo processor frequency

5.2 GHz

Performance Core

8

Efficient cores

8

Processor Turbo Frequency Maximum Performance-core

5.1 GHz

Efficient-core Processor Maximum Turbo Frequency

4.1 GHz

Performance Core Base Frequency

2.1 GHz

Efficient core base frequency

1.5 GHz

Processor cache

30 MB

Processor cache type

L3

Base processor power

65 W

Maximum turbo power

219 W

Installed RAM

32 GB

Maximum RAM supported

64 GB

RAM Type

DDR5 SDRAM

Memory structure

1 x 32 GB

Memory slot

2x SO-DIMM

Memory speed

5600 MHz

Data Integrity Check

No

Non-ECC

Yes

Total storage capacity

1 TB

Optical drive type

No

Memory support

SSD

Number of storage drives installed

1

Total SSD capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD Memory Type

TLC

Solid State Drive (SSD) Interface

PCI Express

NVMe

Yes

Separate graphics card adapter

Yes

Integrated graphics card

Yes

Dedicated graphics card

NVIDIA Quadro T1000

Integrated graphics card model

Intel UHD Graphics 770

Discrete GPU Manufacturer

NVIDIA

Dedicated Graphics Memory

4 GB

Graphics card memory type

GDDR6

Number of dedicated graphics cards

1

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel® UHD Graphics

Ethernet LAN connection

Yes

Wi-Fi

No

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

4

USB 3.2 Gen 2x2 Type-C ports quantity

2

DisplayPort Quantity

2

DisplayPort version

1.4

Microphone/headphone combo jack

Yes

PCI Express x4 slot (Gen 4.x)

2

PCI Express x8 slot (Gen 4.x)

1

Type of houses

Mini PC

Product color

Black

Placement supported

Horizontal/Vertical

Year of introduction

2023

Product type

Workstation

Market positioning

Performance

Audio chip

Realtek ALC3205-VA2-CG

Built-in speakers

Yes

Number of speakers

1

Password protection

Yes

Password protection

BIOS, Power On, User

Operating system included

Windows 11 Pro

Pre-installed software

HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0

Software provided

HP Wolf Pro Security Edition (1 year)

HP Support Assistant

Yes

HP Security Tools

HP Secure Erase; HP SureClick; HP BIOSphere Gen6; HP Sure Admin; optional lid sensor kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2. HP Sure Run Gen5

HP Software Included

HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0

HP Segment

Business

Diet

280 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50 - 60 Hz

Sustainable technologies and materials

45% post-consumer recycled plastic; 25% closed-loop plastic derived from IT equipment; bulk packaging available; 80 Plus® Gold power supplies available; molded cellulose padding inside the box is 100% sustainably sourced and recyclable; Speaker housing and system fan contain potentially ocean-bound plastic; contains recycled metal

Length

211 mm

Depth

218 mm

Height

69 mm

Weight

2.4 kg

Packaging width

499 mm

Packaging depth

170 mm

Packaging height

298 mm

Packaging weight

4.8 kg

Mouse included

Yes

Mouse connectivity

Wired

Keyboard included

Yes

Keyboard connectivity

Wired

HP GTIN (EAN/UPC)

197961052879

Keyboard type

USB
