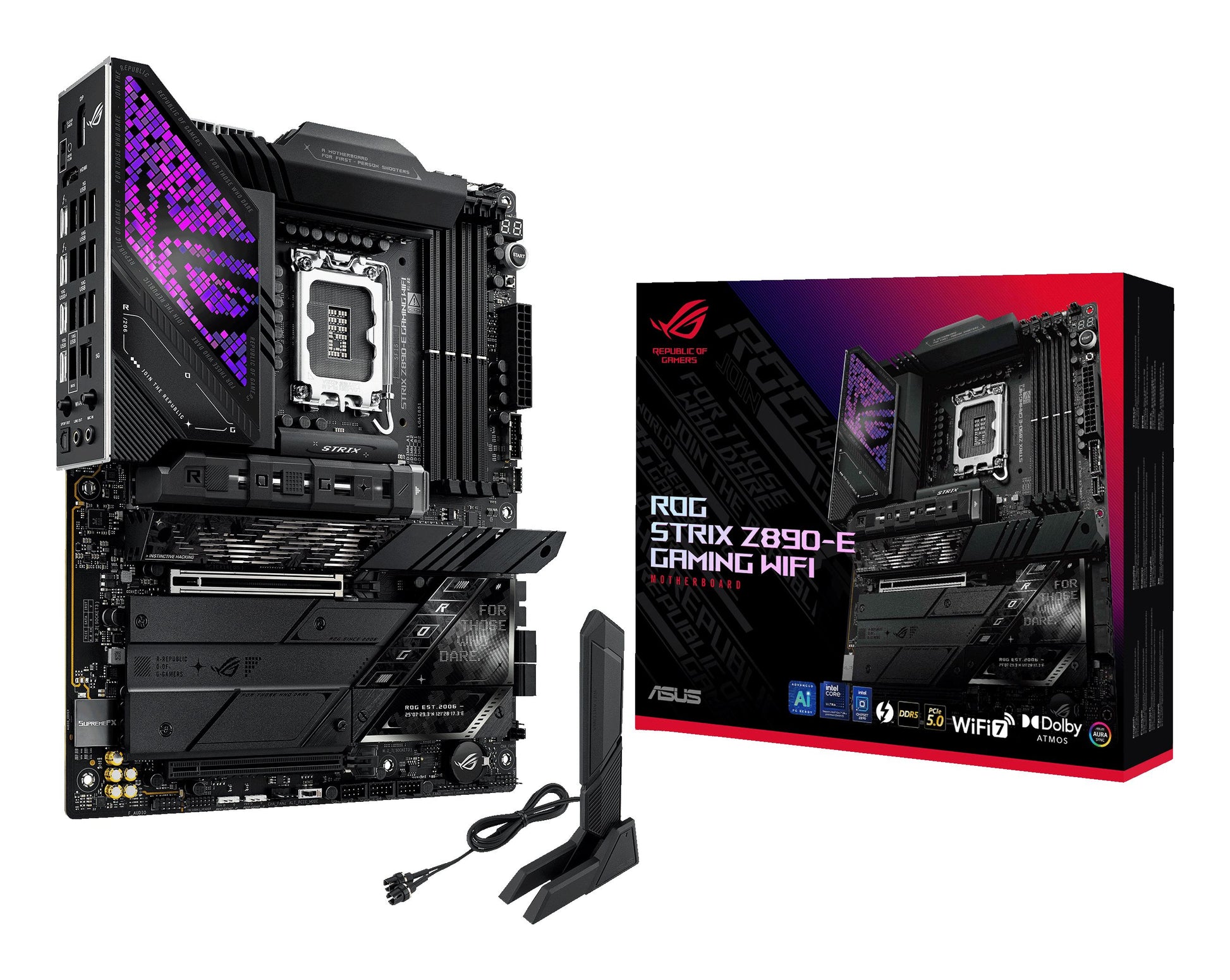

ASUS ROG STRIX Z890-E GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX

ASUS ROG STRIX Z890-E GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector: USB Type-A, USB Type-C. Ethernet interface type: 5 Gigabit Ethernet, Standard Wi-Fi standard: Wi-Fi 7 (802.11b/g/n)

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible Processors

Intel Core Ultra (Series 2)

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory clock speed (max)

8800 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

11

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

Integrated graphics card

No

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

USB 3.2 Gen 2x2 connectors

1

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

5

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

2

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

DisplayPort Quantity

1

Microphone input jack

Yes

S/PDIF output port

Yes

Thunderbolt Ports Quantity

2

USB connector

USB Type-A, USB Type-C

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

5 Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 7 (802.11b and b)

Bluetooth

Yes

Bluetooth version

5.4

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio system

7.1 channels

Audio chip

Realtek ALC4080

Product color

Black

Supported Windows operating system

Windows 11

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

7

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

CMOS reset button

Yes

Packaging width

356 mm

Packaging depth

87 mm

Packaging height

281 mm

Packaging weight

2.58 kg

Length

305 mm

Depth

244 mm

quantity of mSATA ports

0
