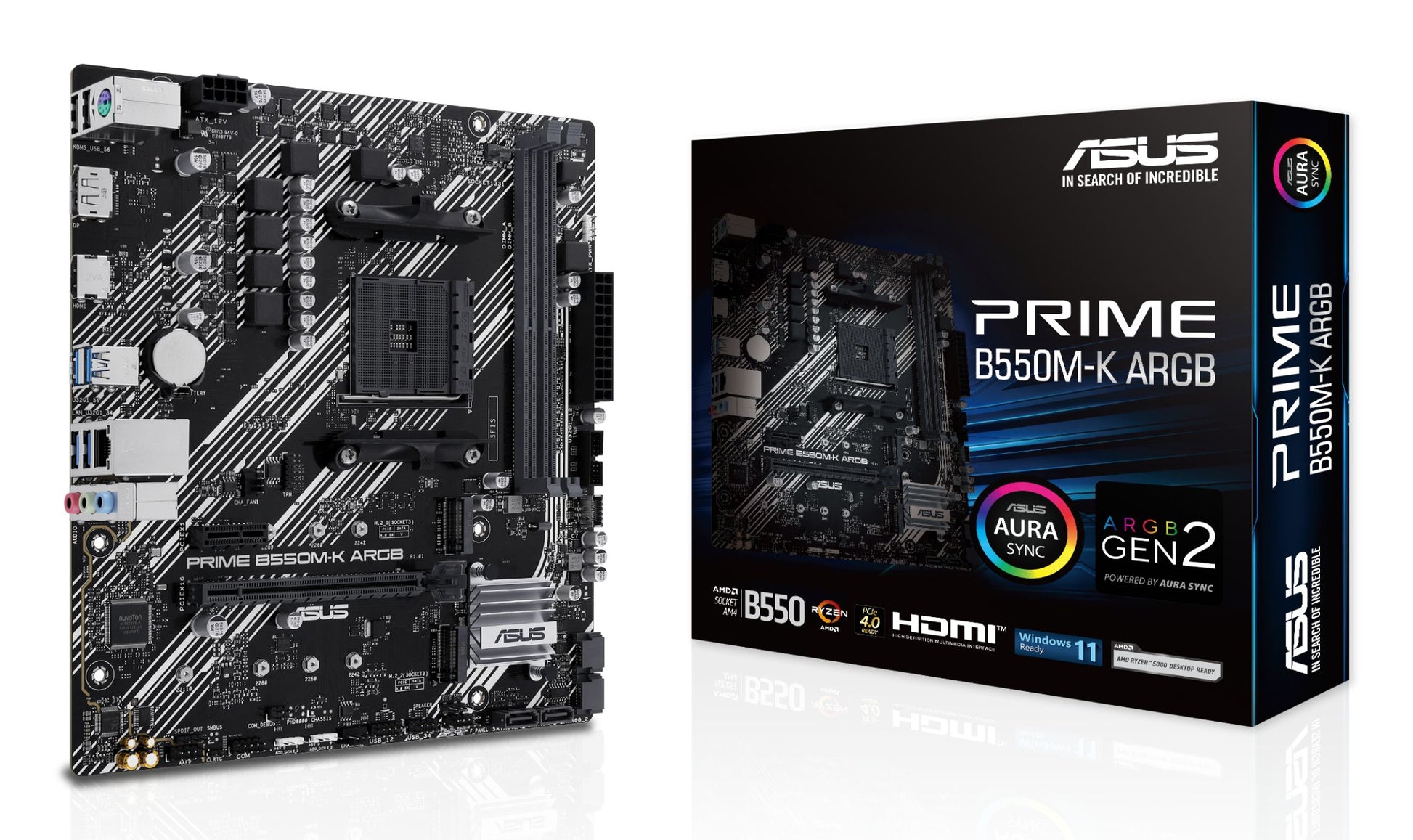

ASUS PRIME B550M-K ARGB AMD B550 Socket AM4 micro ATX

ASUS PRIME B550M-K ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM4

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866,5100 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 10

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

PS/2 Ports Quantity

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

Wake-on-LAN ready

Yes

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio system

7.1 channels

Supported Windows operating system

Windows 10 x64, Windows 11

PCI Express x1 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 3.x)

1

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

2

BIOS Type

EFI AMI

BIOS Memory Size

128 Mbit

CMOS clear jumper

Yes

Packaging width

260 mm

Packaging depth

270 mm

Packaging height

515 mm

Packaging weight

960 g

Length

244 mm

Depth

221 mm

Height

36.5 mm

Cables included

SATA

Weight

460 g
