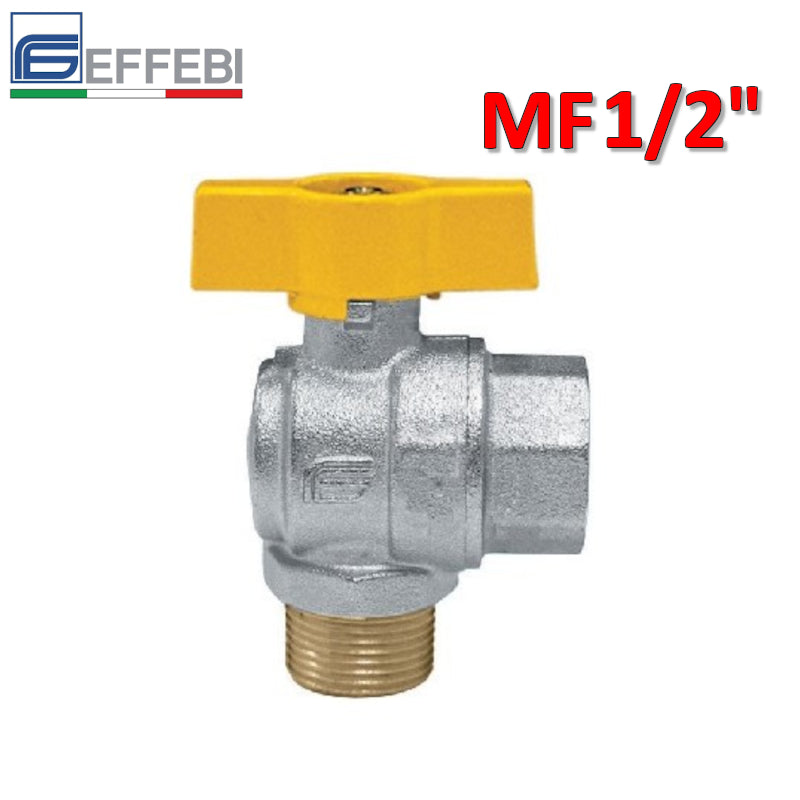

VENUS gas ball valve male 1/2'' Female 1/2'' angle

VENUS GAS BALL VALVE

1/2" MALE - 1/2" FEMALE SQUARE

DESCRIPTION:

Ride:

• total.

Stem:

• explosion-proof.

Side seals:

• High strength virgin PTFE.

Top hold:

4 gaskets

1 PTFE ring - high pressure.

2 conical anti-friction PTFE seals - medium and low pressure.

• the valve body is that of the VENUS SQUADRA certified according to the EN331 regulation

• the VENUS valve complies with regulation (EU) 305/2011 CPR – Construction Products

Areas of use:

the VENUS Squadra series is mainly used in gas distribution systems of the 1st, 2nd, 3rd family (EN437).

Threaded ends:

• male and female valve UNI ISO 7/1 (UNI EN 10226).

Operating organs:

• aluminum butterfly.

Available colors:

• yellow.

All valves comply with Directive 97/23/EC and are 100% tested with an electronically controlled pneumatic leak test.

TEMPERATURE LIMITS

• from -20°C to + 60°C

PRESSURE LIMITS

• MOP5 (20)

Product Code: 1074G264
