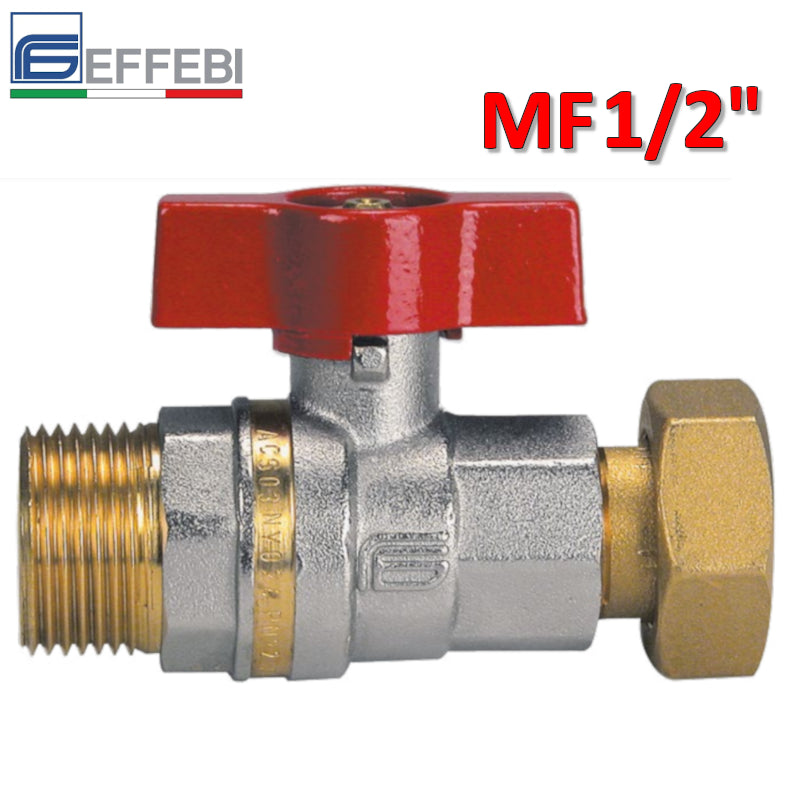

ASTER ball valve male 1/2'' with female swivel 1/2''

BALL VALVE - ASTER

1/2" MALE - 1/2" FEMALE SWIVEL

DESCRIPTION:

Ride:

• total - reduced (1/2”x1/2”).

Stem:

• explosion-proof.

Side seals:

• High strength virgin PTFE.

Top hold:

4 gaskets

• 1 PTFE ring - high pressure.

• 2 anti-friction conical PTFE seals - medium and low pressure.

• 1 O-Ring - low pressure.

• the valve body is the ASTER one certified according to the EN331 regulation

• the ASTER valve complies with regulation (EU) 305/2011 CPR – Construction Products

Threaded ends:

• UNI ISO 228 swivel

• male and female valve UNI ISO 7/1 (UNI EN 10226).

Operating organs:

• aluminum butterfly.

Available colors:

• red.

All valves comply with Directive 97/23/EC and are 100% tested with an electronically controlled pneumatic leak test.

TEMPERATURE LIMITS

• from -20°C to + 60°C

PRESSURE LIMITS

• MOP5 (20)

Product Code: 1022R244XG
